| Item | QC4.10-cd(blank) |
| turning: 46A(6.0mm²) 55A(10 mm²) |
|
| Rated Voltage | 1500VDC (TUV) |
| Size of Cables | 2.5mm²（14AWG） 4.0mm²（12AWG） 6.0mm²（10AWG） 10 mm²（ 8AWG） |
| Safety Class | II |
| Temperature Range | -40℃〜+85℃ |
| Contact Resistance | ＜0.2mΩ |
| Protection Grade | IP68 |
| Flammability Class | V-0 |
Solar photovoltaic connector

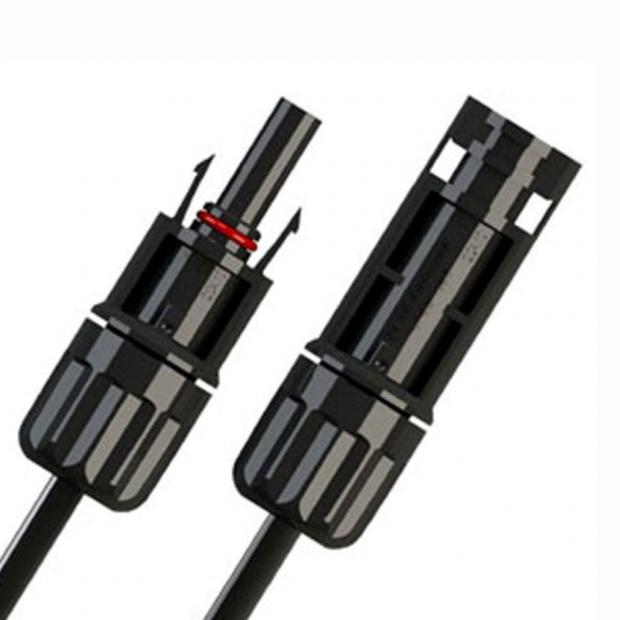

QC4.10-cd connector
QC4.10-cd connector
◆Hihg Voltage,Large Current , Low Resistance.
◆Hihg reliability,low cost.
◆Protection grade up to IP68.
◆Certified by TUV and UL.
TUV certificate number：R50353779
UL certificate number： E340004
◆Hihg reliability,low cost.
◆Protection grade up to IP68.
◆Certified by TUV and UL.
TUV certificate number：R50353779
UL certificate number： E340004
DETAIL
