  1. Solar photovoltaic connector

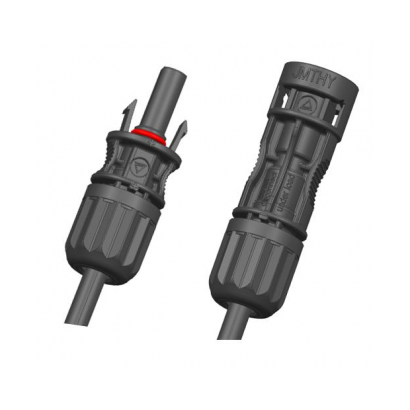

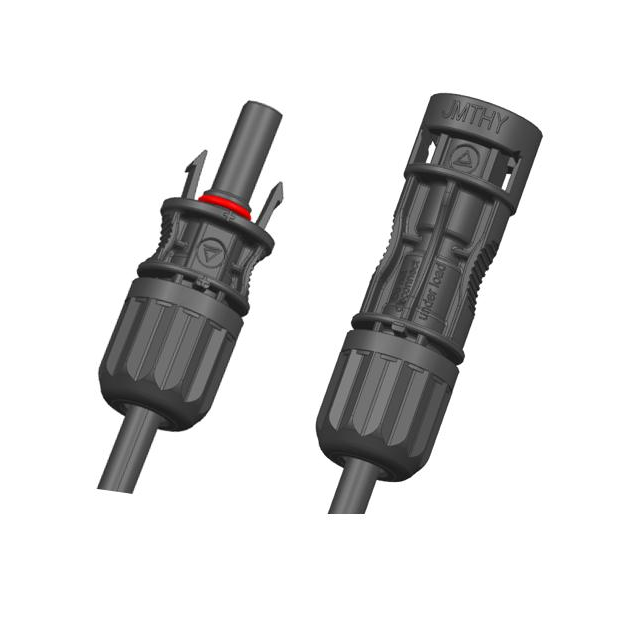

PV-JM608

PV-JM608

MAIN SPECIALITY：
● With the capacity of age and UV-resistance.
● The connectors can work in the atrocious weather.
● Cable strain relief, Multilam=Long term stability.
● Stable automatic lock-system makes connectors open and close easily.
● Standard：IEC62852 UL6703
/
DETAIL
Performance Indicators
TYPE:PV-JM608(TUV) TYPE:PV-JM608 (UL)
Electrical Features Electrical Features
Rated Current:41A Rated Current:35A (12AWG)
Rated Voltage：:1500V DC Rated Voltage:1500V
connectors:≦0.5mΩ connectors: ≦0.5mΩ
Safety Class：:Class II Safety Class：:Class II
Mechanical Features Mechanical Features
Temperature Range：:-40°C~ +85°C Temperature Range：:-40°C~+90°C
Wire Size Range:4m㎡ 6m㎡ Wire Size Range:12AWG 10AWG 8AWG
Degree of Protection:IP68,Mated Degree of Protection:IP68,Mated
Unmating Force:100N Unmating Force:100N
Material Features Material Features
Insulation Materia:PV40Z/PC,Black Insulation Materia:PV40Z/PC,Black
Contact Material : Copper , Tin Plated Contact Material : Copper , Tin Plated
Flame Class : UL94-V0 Flame Class:5VA
