Solar photovoltaic connector

  1. Solar photovoltaic connector

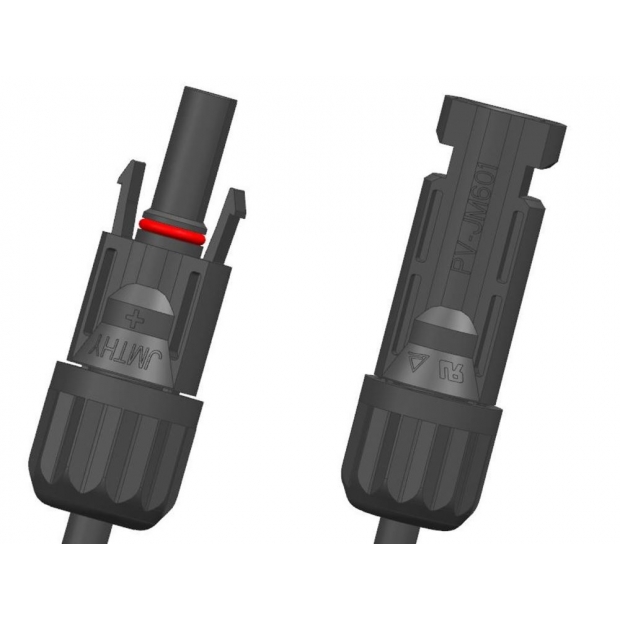

PV-JM601

PV-JM601

MAIN SPECIALITY：
● With the capacity of age and UV-resistance.
● The connectors can work in the atrocious weather.
● Cable strain relief, Multilam=Long term stability.
● Stable automatic lock-system makes connectors open and close easily.
● Standard：IEC62852 2014 UL6703
/
DETAIL
Performance Indicators
TYPE:PV-JM601(TUV) TYPE:PV-JM601 (UL)
Rated Current Rated Current
Rated Curren:41A Rated Curren:35A
Rated Voltage:1000V DC Rated Voltage:1000V
connectors:≦0.5mΩ connectors: ≦0.5mΩ
Safety Class:Class II Safety Class:Class II
Mechanical Features Mechanical Features
Temperature Range:-40°C~ +85°C Temperature Range:-40°C~+90°C
Wire Size Range:4m㎡ 6m㎡ Wire Size Range:12AWG
Degree of Protection:IP68,Mated Degree of Protection:IP68,Mated
Unmating Force:100N Unmating Force:100N
Material Features Material Features
Insulation Materia:PC,Black Insulation Materia:PC,Black
Contact material：Copper ，Tin Plated Contact material：Copper ， Tin Plated
Flame Class:UL94-V0 Flame Class:5VA
