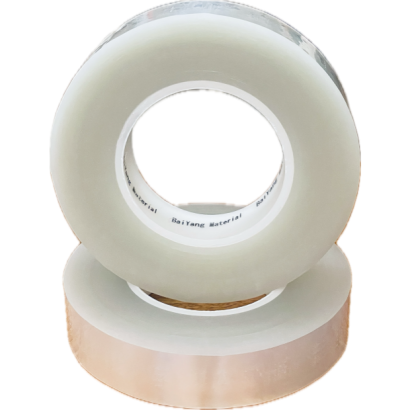

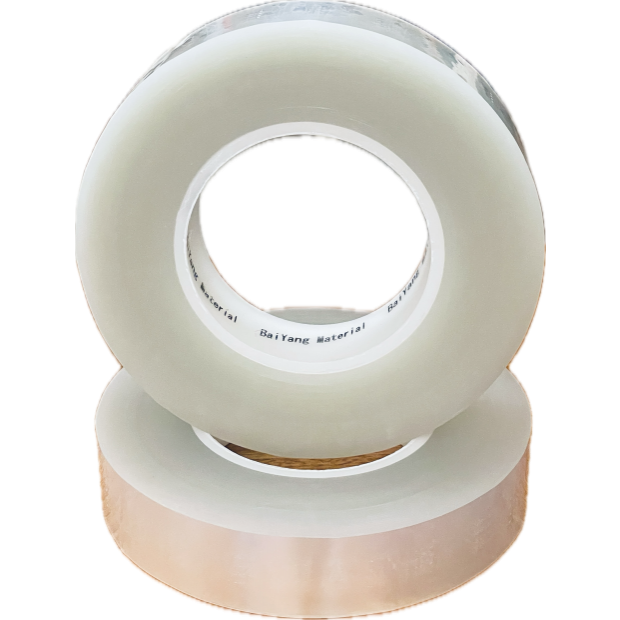

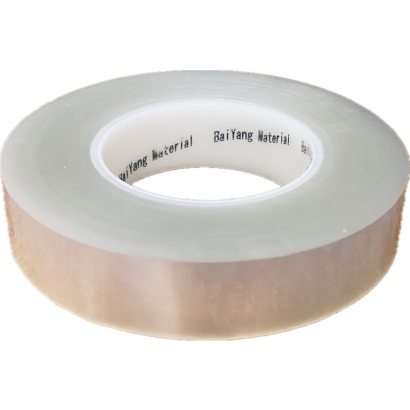

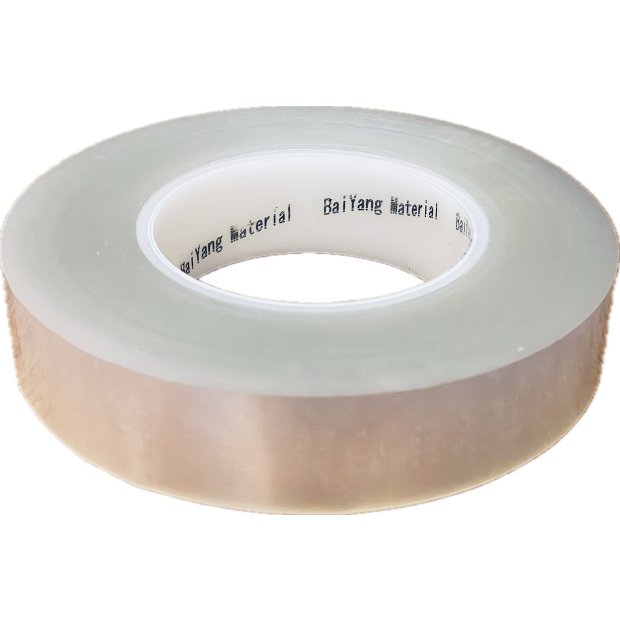

C Type Edge Sealing Tape T5060

C Type Edge Sealing Tape T5060

It is mainly used for edge sealing and protection of double glass solar cell module.
High temperature resistance：It can be laminated at high temperature,easy to peel and no residue.
High Strength：The tensile strength of the tape is higher than 100Mpa.which ensures that the tape will not break in use.
/
/
  • T5060-2調整後.png
  • T5060調整後.png
DETAIL
Performance Indicators
Physical Properties, not for specification purpose.
Item Typical data
Appearance Trasparency
Stripping force 6N/25mm↑
Tensile Stregth 100Mpa↑
Temperature resistance +180°↑
Carriers Polyethylene terephthalate
Thickness 0.06mm
Width 30mm+0.5mm
Length 100m/200m/500m(According to the customer)
