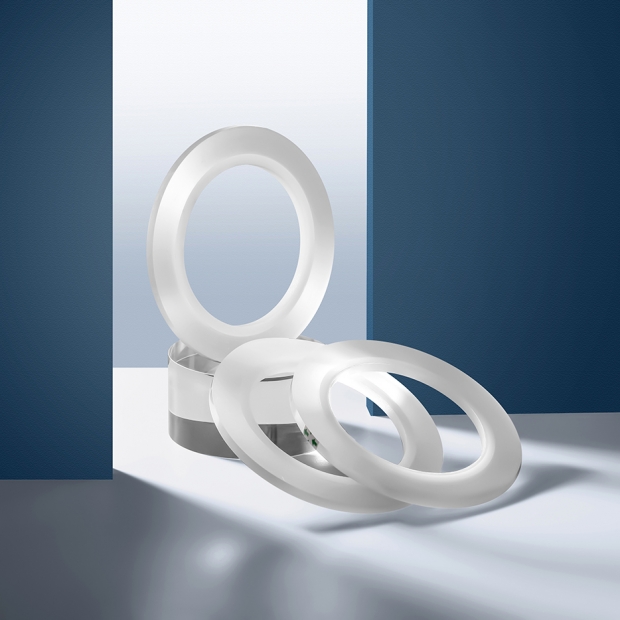

High Temp Fixation Tape 9966

Hyperion Single-sided Adhesive tapes 9966 are originally developed for the superior bonding performance to the varied surfaces of mirrors, steels and aluminum alloys at wide range of temperature. The outstanding properties of heat, water, chemicals & UV-light resistance and noneageing,
none-cracking & anti-corrosion characteristics are perfectly suited for bonding and fixation of product parts. 9966 is used for bonding and fixation of solar cells in PV module production line.

Product Structure

Adhesives	Solvent - based acrylic adhesive (Modified)
Carriers	Polyethylene terephthalate
Adhesive Thickness	0.044±0.01 mm
Release Liner Thickness	0.036±0.01 mm
Total Thickness	0.08±0.01 mm
Tape Color	Transparency
Shelf Life	24 months at ambient temperature 21 ℃& RH50%

Performance Indicators
Physical Properties, not for specification purpose.

Stripping force	≥3.0N/10 mm ≥2.5N/8 mm ≥1.5N/5 mm
Tensile Strength	≥50 Mpa
Elongation at Break	≥60%
Temperature Resistance	-40°C~155°C
Light Transmittance	≥85%
UV-light resistance	No apparent degradation when exposed to splash testing of typical hydrocarbon solvents
Insulation strength	5KV

※Passed UL certification, certificate number: E515046, issue date: 2020-July-09.
