Photovoltaic Adhesive

  1. Silicone
  2. Photovoltaic Adhesive

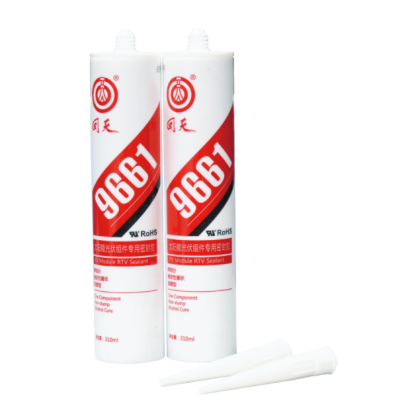

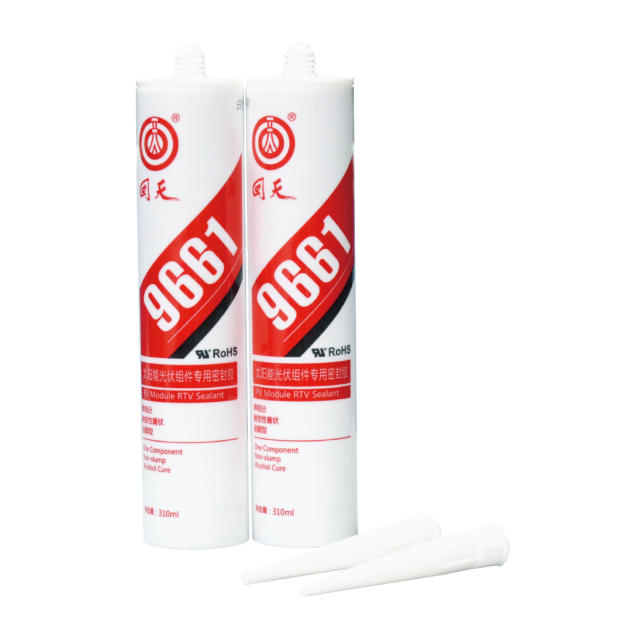

9661 High-performance RTV sealants

9661 High-performance RTV sealants

* One component, room temperature cure.
* Excellent adhesion to typical PV substrates,
including anodized aluminum, PPO, glass,
TPT/TPE series backsheets, etc.
* Excellent resistance to durability tests.
Thermal cycle test: -40～85 oC/200 cycles,
Damp-heat test: 85 oC/85 oC/1000h
* UL 94HB.
/
DETAIL
Before curing
Item Typical
Color White/black
Density    g/cm3
(GB/T 13354-1992)		 1.45
Working time, min (25℃,50%RH)
(GB/T 13477.5)		 5
Extrusion rate g /15s
（0.5MPa， 25℃，3mm）		 8

After total curing
Item Typical
Tensile strength (MPa)
(GB/T 528-2009)		 2.6
Elongation break (%)
(GB/T 528-2009)		 400
Shear strength (MPa)
(GB/T 7124-2008)		 1.5
Tear strength (KN/m)
(GB/T528-2009		 15
Hardness (shore-A)
(GB/T 531.1-2008)		 45
Volume resistivity (Ω.cm)
(GB/T 1692-2008)		 1.0×1015
Dielectric strength (KV/mm)
(GB/T 1695-2005)		 20
Working temperature (℃) -60～200
