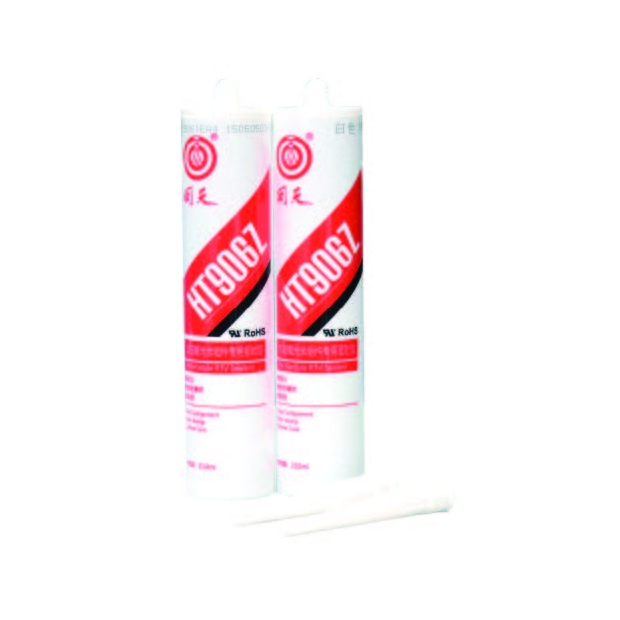

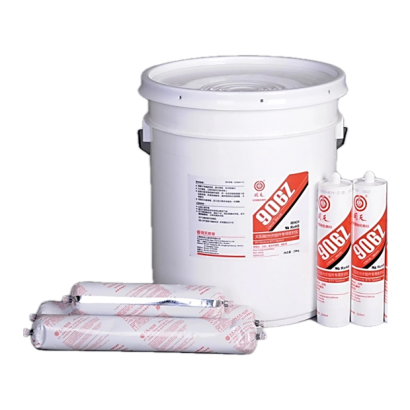

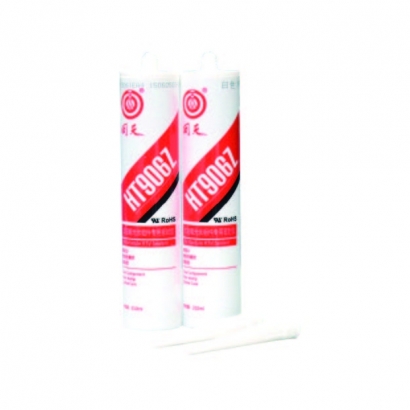

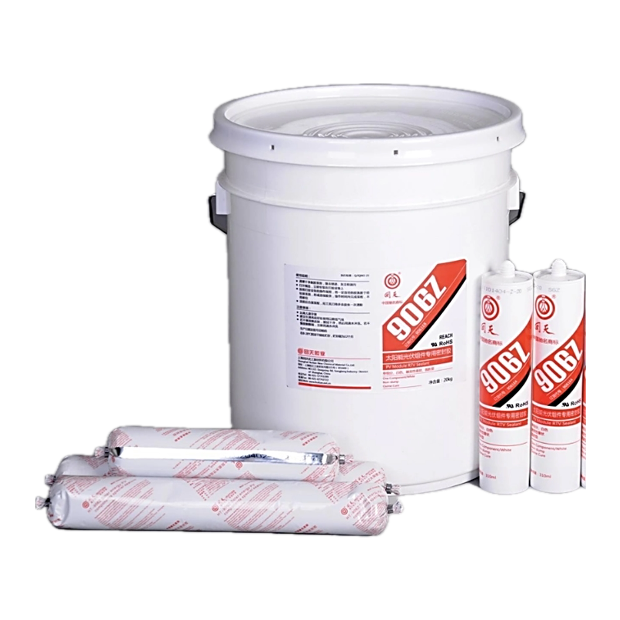

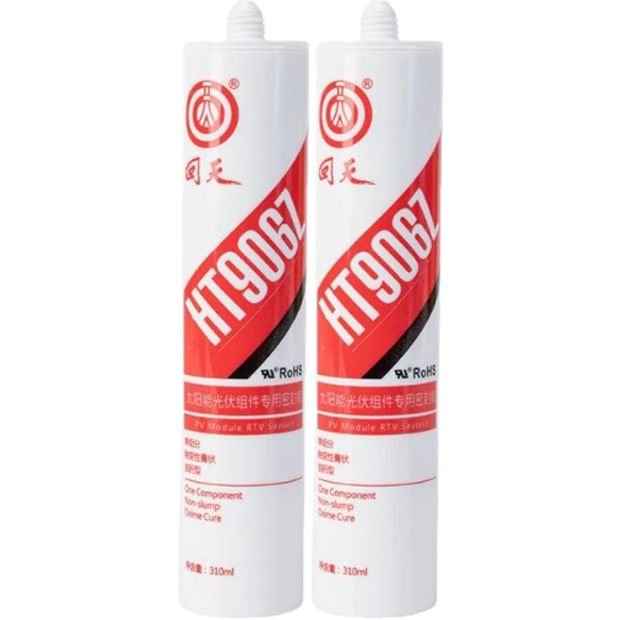

906Z RTV Bonding and Sealing Sealant

906Z RTV Bonding and Sealing Sealant

* One component, thixotropic paste, white,RTV silicone.
* Good adhesion to aluminium, glass,KPC/CPC backsheets, junction box plastic PPO/PPE.
* The colloid is resistant to yellowing, after 85℃, 85% RH aging 1000 hours test. Good compatibility with various types of EVA.
* UL Certificate No. E248611, compliant with EU ROHS, SGS, and TUV.
/
/

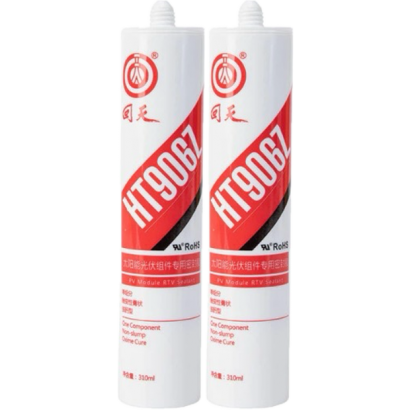

  • 906Z去背1.png
  • HT906Z_去背_.png
DETAIL
Before curing
Item Typical
Color White
Density    g/cm3
(GB/T 13354)		 1.44
Working time, min (25℃,50%RH)
(GB/T 13477.5)		 9
Extrusion rate g /15s
（0.5MPa， 25℃，3mm）		 9

After total curing
Item Typical
Tensile strength (MPa)
(GB/T 528)		 2.5
Elongation break (%)
(GB/T 528)		 350
Shear strength (MPa)
(GB/T 7124)		 1.5
Hardness (shore-A)
(GB/T 531.1)		 55
Volume resistivity (Ω.cm)
(GB/T 1692)		 1.0×1015
Dielectric strength (KV/mm)
(GB/T 1695-2005)		 20
Working temperature (℃) -60～200
